Hangzhou Zon Packaging Machinery Co. , Ltd
| Lugar de origem: | CHINA |
|---|---|
| Marca: | ZON PACK |
| Certificação: | CE Certification |
| Número do modelo: | ZH-BL10 |
| Quantidade de ordem mínima: | 1 grupo |
| Preço: | 22000-28000USD per set |
| Detalhes da embalagem: | caso de madeira |
| Tempo de entrega: | 25-30 dias de trabalho |
| Termos de pagamento: | L/C, T/T, D/P, Western Union |
| Habilidade da fonte: | 199 ajustado pelo mês |
| NOME: | máquina de empacotamento do alimento do petisco | Material: | quadro 304ss |
|---|---|---|---|
| Tipo do saco: | Descanse o saco, saco do reforço, saco de perfuração, conectando o saco | Material de embalagem: | filme laminado, filme do PE |
| VFFS: | 520 | Velocidade da embalagem: | 25-70bag/min, depende de seu produto |
| Largura do saco: | 90-250mm | Comprimento do saco: | 80-350mm |
| Poder: | 220V 50/60 de hertz 2.2KW | Dispositivos opcionais: | Impressora da data |
| Relatório de teste da maquinaria: | Fornecido | ||
| Realçar: | Máquina de empacotamento do alimento do petisco de VFFS,máquina de empacotamento do alimento do petisco de 250mm,Máquina de empacotamento do chocolate de VFFS |
||

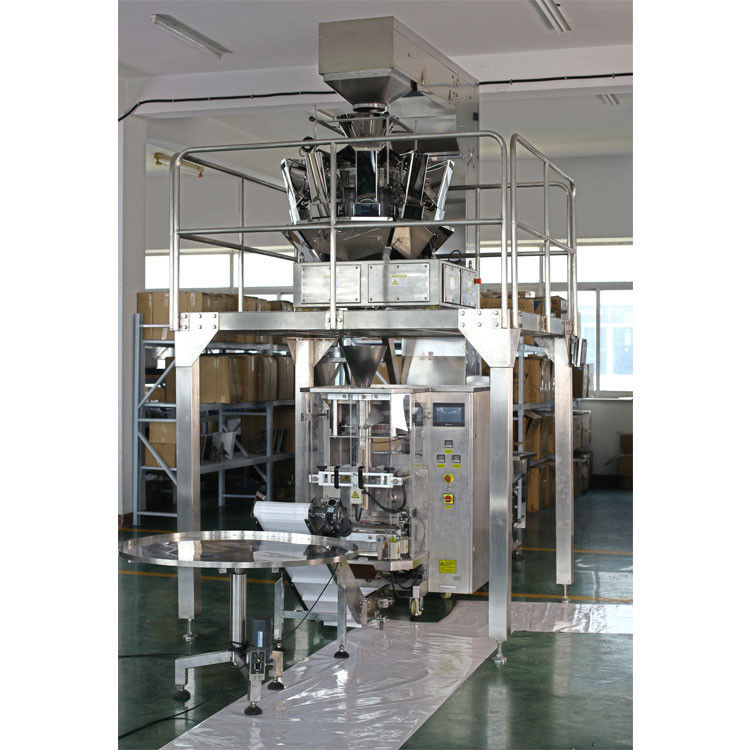

1 year warranty 520 film width snack food packaging machine for chocolate candy
Technical Feature
1.Multi-head combined weigher improve metering speed and accuracy.
2.7inch touch screen,easy to operate and multiple language for choice.
3. Packing efficiency will be high with vertical packing machine
4. Multi-head combined weigher, improve metering speed and accuracy.
5. 7 inches touch screen, easy operation and multiple language for choice.
6. Imported PLC equipment, machine performance is stable and easy for parameters adjusting.
| Technical Specification | |
| Model | ZH-BL10 snack food packaging machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film ；PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS520: (W) 90-250 (L)80-350 |

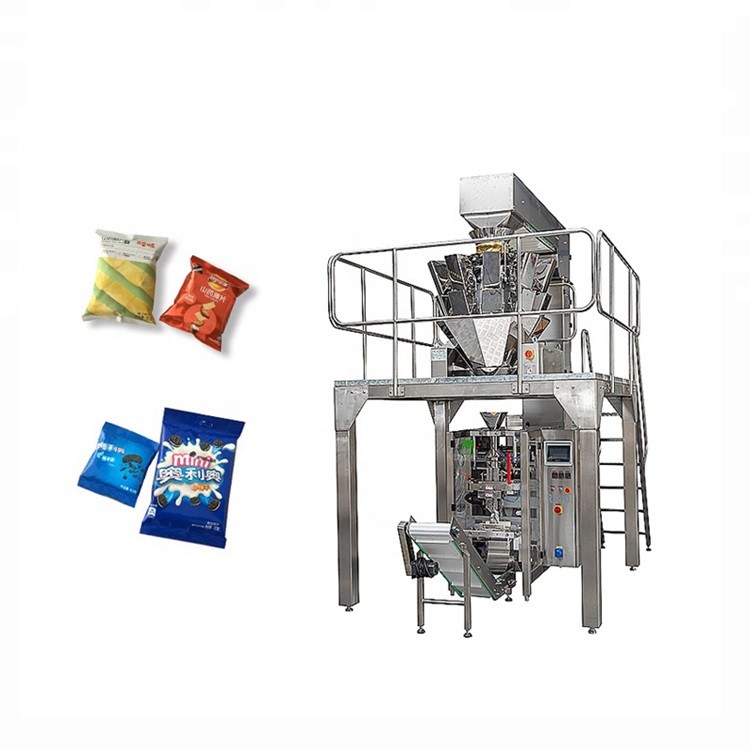

System Composition
1. Elevator bucket conveyor:
The elevator and electronic metering scale is used together, control circuit is used to control material's position,
realizing automatic feeding and stopping function.
2. Multihead weigher:
4 heads, 10 heads, 14 heads can be optional.
3. Working platform:
Support the multihead weigher.

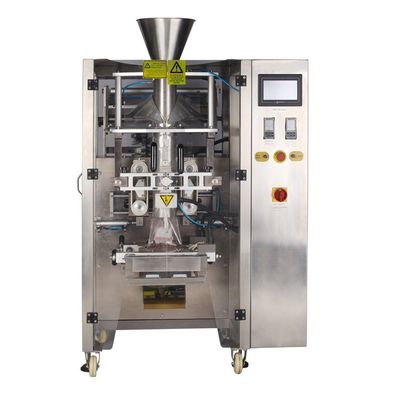

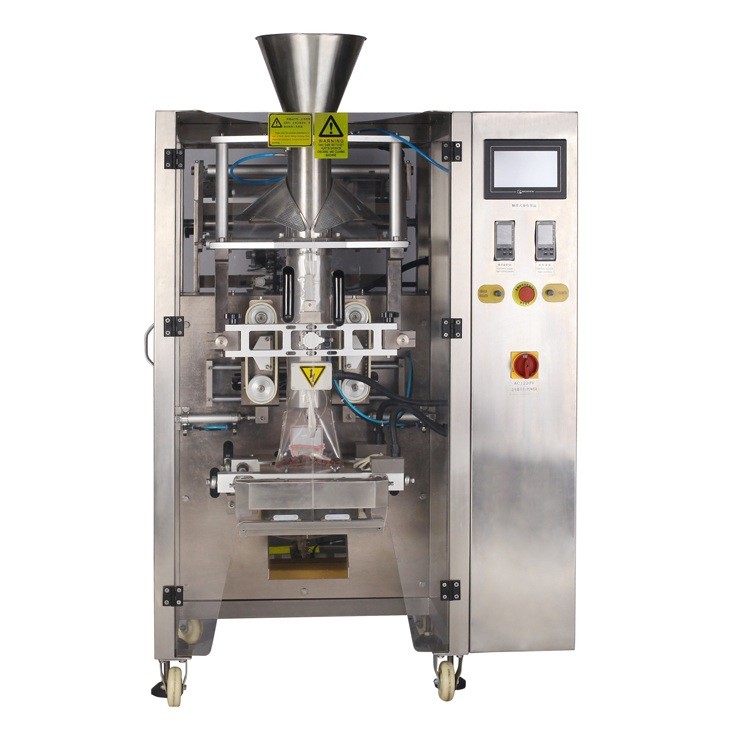

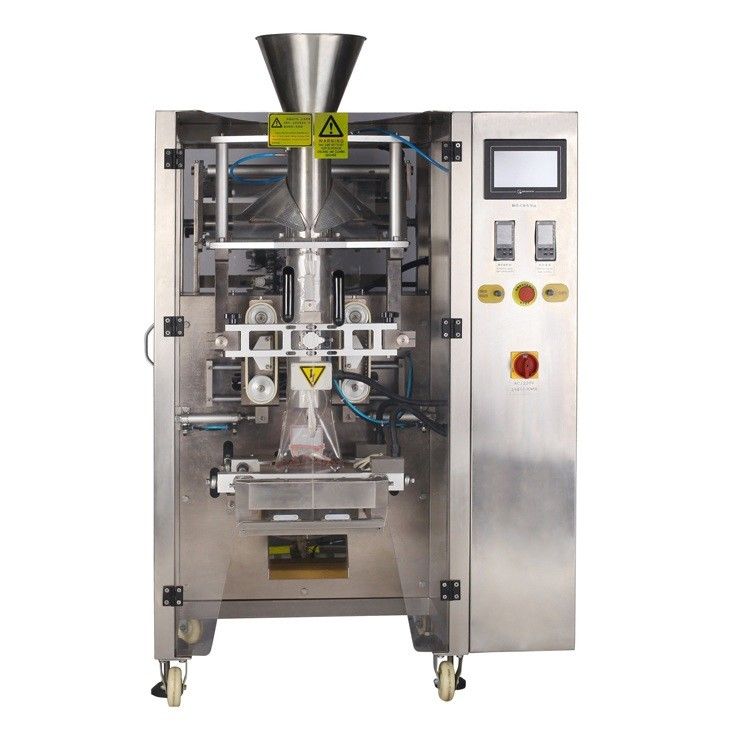

4. Vertical packing machine:
Precision bag former & touch screen, digital screen display with numerical setting and flexible operation;
Imported PLC control system and color touching screen, easy operation
5. Finishe bag conveyor:
Adopting imported miniature motor and featured with low noise and long tifetime.
It can transport finished goods.
Application of Machine
ZH-BL10 snack food packaging machine is suitable to use in packing all kinds of grain material, sheet material,
strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit,
jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant
foodstuff, hardware and plastic can be weighed by the ration.
Machine Details
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
