Hangzhou Zon Packaging Machinery Co. , Ltd
| Lugar de origem: | China, Zhejiang |
|---|---|
| Marca: | ZONPACK |
| Certificação: | CE SGS |
| Número do modelo: | ZH-A10 |
| Quantidade de ordem mínima: | 1sets |
| Preço: | USD7600/Set |
| Detalhes da embalagem: | caso de madeira |
| Tempo de entrega: | dias 10-15working |
| Termos de pagamento: | L/C, T/T, D/P, Western Union |
| Habilidade da fonte: | 99sets pelo mês |
| Tipo: | Pesador automático do multihead | Categoria automática: | Automático |
|---|---|---|---|
| Tipo conduzido: | bonde | O serviço pós-venda forneceu: | Suporte on-line, Suporte técnico por vídeo, Peças de reposição gratuitas, Instalação em campo |
| Método do motorista: | Motor deslizante | Opção: | Funil Dimple Hopper /Printer do sincronismo |
| Realçar: | pesador do multipond 2000g,pesador de 5l Multihead,pesador de 2000g Multihead |
||

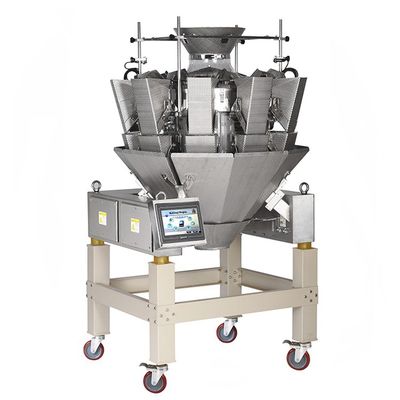

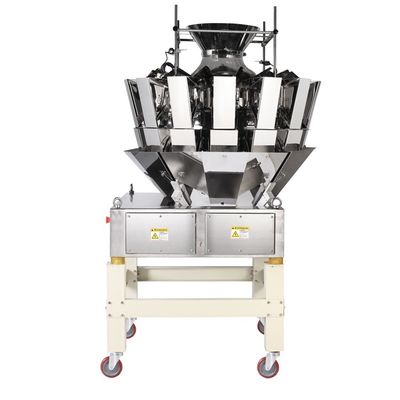

304SS frame Dimple surface combination weigher for frozen food vegetable packaging machine
Product Description
Ⅰ. Main function
1. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate.
2. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
3. Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper.
4. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
5. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines.

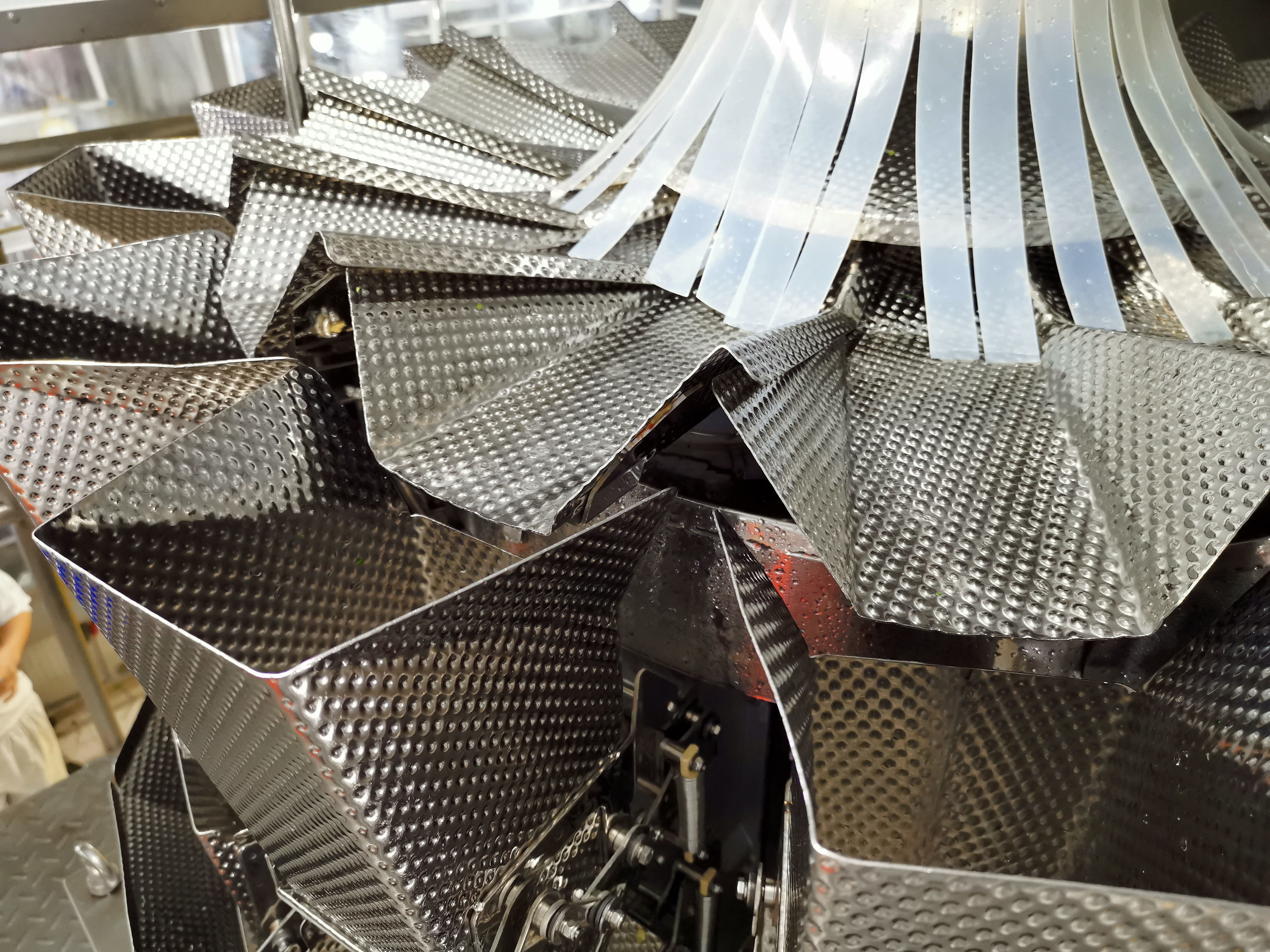

6. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily.
7. Different authority can be set for different operator, which is for easy management.
8. 7" / 10 touch screen can meet various requirements;
Ⅱ . Parameters
| Model | ZH-A10 |
| Weighing Range | 10-2000g |
| Accuracy | ±0.1-1.5g |
| Hopper Volume | 0.5L/1.6L/2.5L/5L |
| Driver Method | Stepper motor |
| Option |
Timing Hopper/ Double door Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Vibrator |
| Interface | 7'HMI or 10"HMI |
| Power Parameter | 220V/ 50/60HZ 1000W |
| Package Volume (mm) | 1650(L)×1120(W)×1150(H) |
| Gross Weight(Kg) | 400 |
Ⅲ . Application

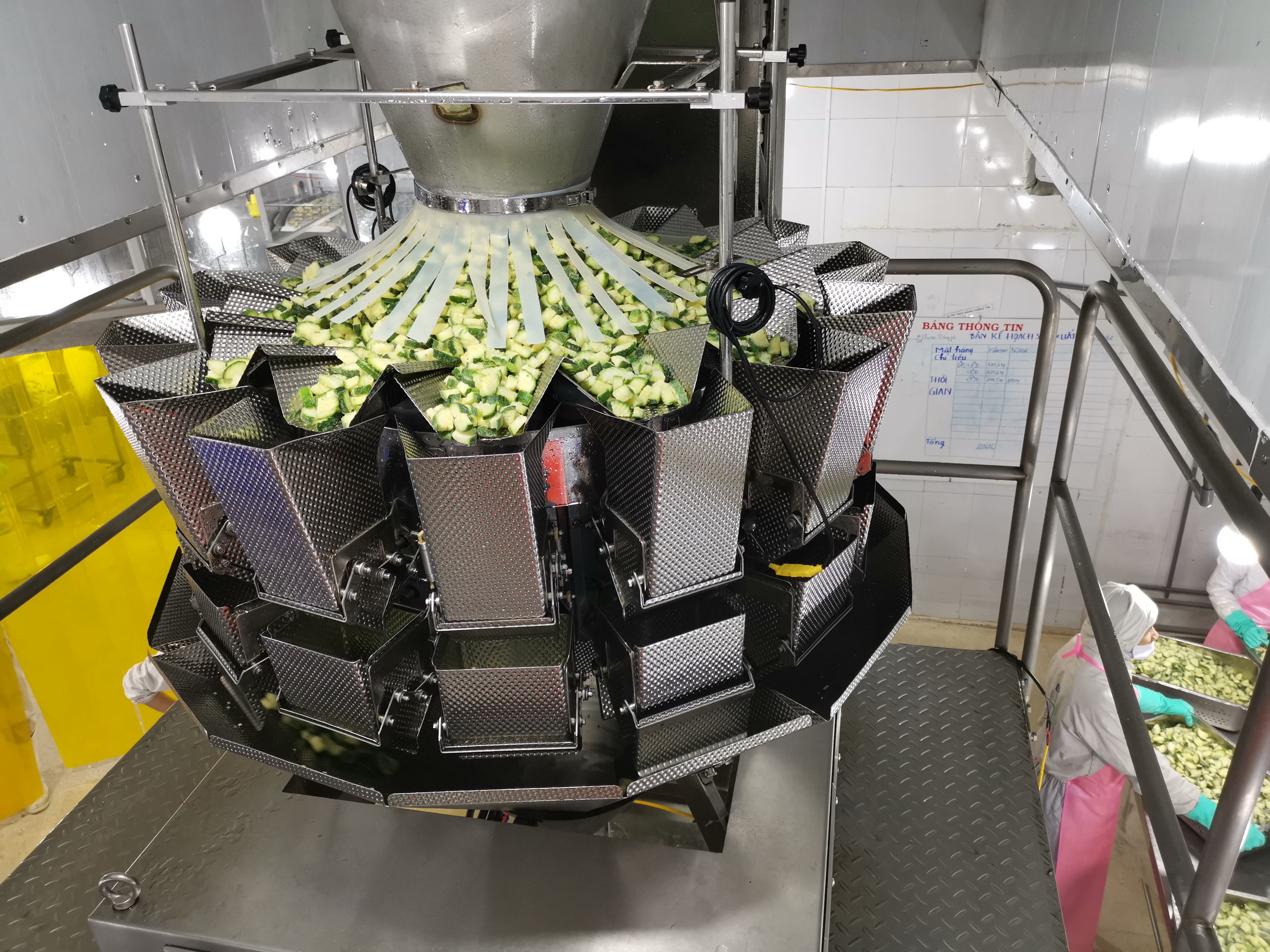

ZH-A10 is developed for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.
